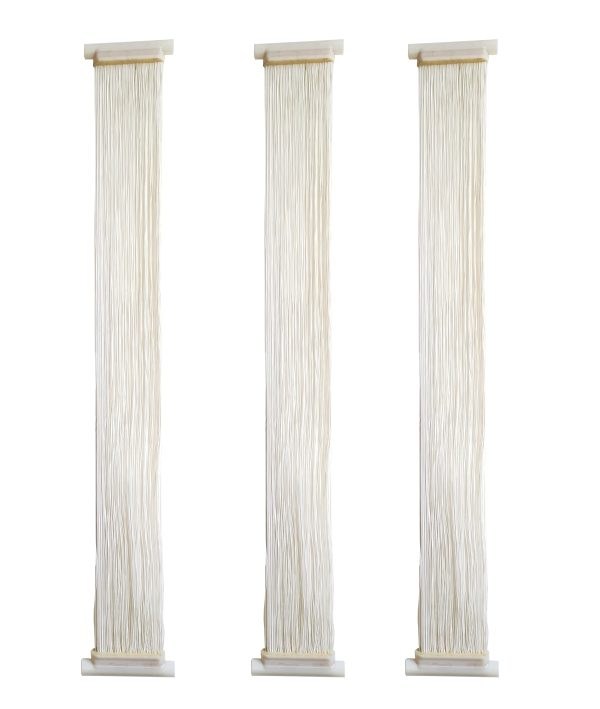

ENHANCED OXYGEN BIOFILM REACTOR(EOBR)FOR RIVER/LAKE

ENHANCED OXYGEN BIOFILM REACTOR(EOBR)FOR RIVER/LAKE

  • Bubble mixing oxygenation
  • Bubbleless area for biofilm built-up
  • High OTR, Low Energy Consumption
  • Increase DO, Prevent black odor;
  • Easy construction,in-site ecological restoration;
  • No chemicals, no secondary pollution.

Description

ENHANCED OXYGEN BIOFILM REACTOR(EOBR) FOR RIVER/LAKE

  •  Bubble mixing oxygenation
  • Bubbleless area for biofilm built-up
  • High OTR, Low Energy Consumption
  • Increase DO, Prevent black odor;
  • Easy construction,in-site ecological restoration;
  • No chemicals, no secondary pollution.

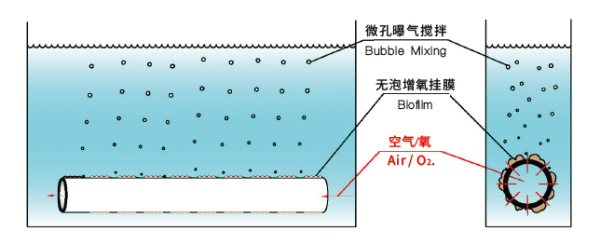

OX-MABR-River Process diagram

NO. Items Unit OX-MABR-HD(River)
1 Materials Polymer
2 Pore size μm <0.05
3 Fiber Breaking Intensity N ≥150
 4 Air permeability L/㎡.h.bar >60
5 (OTR) Oxygen Transfer Rate g O2/㎡.d 6~15
6 COD removal g COD /㎡.d 5~20
 7 Ammonia removal g N/㎡.d 1~2
 8 Processing Pressure Kpa 5~50
9 Processing Airflow L/㎡.h 2~5
10 Membrane Feature Combination of air bubble and molecular

oxygen, high DO, Energy saving,

specialized in ecological restoration for

river/lake etc.
