The MBR plant is able to turn the wastewater into usable. By using this system, the pollutants are cleared out from the polluted water and supply a safe and healthy water source that people depends on. It pre-gathered, slip mounted and manufacturing plant tried packaged systems have fewer prerequisites for the establishment and decreased nearby development costs. This MBR Plant has compact structures for simple and completed building packages with the snappy conveyance. Simple task and maintenance require insignificant administrator supervision, you can controlled remotely.
MBR Plant can be widely used for municipal wastewater, educational institutions and healthcare applications, hotels, labour and refugee camps, parks and military bases, building complexes (Offices, Shopping Centers, Small Township), industrial wastewater.
Design parameter for typical sewage treatment:
| Items | PH | COD (mg/L) | BOD (mg/L) |
NH3-N (mg/L) |
TP (mg/L) |
TSS (mg/L) |
Turbidity |
| Influent | 6-9 | 500 | 200 | 30 | 3 | 200 | — |
| Effluent | 6-9 | ≤25 | ≤5 | ≤5 | 0.5 | ≤5 | ≤2NTU |
Note: effluent quality satisfy Chinese national standards GB/T 18920-2002 and Class 1-A of GB/T

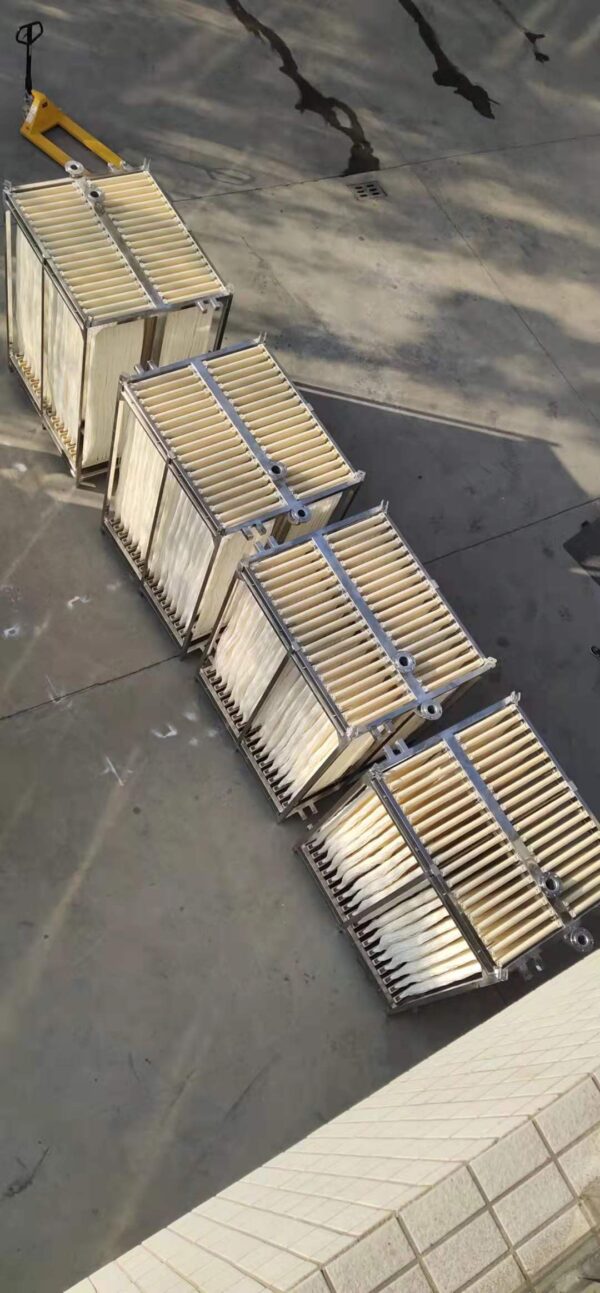

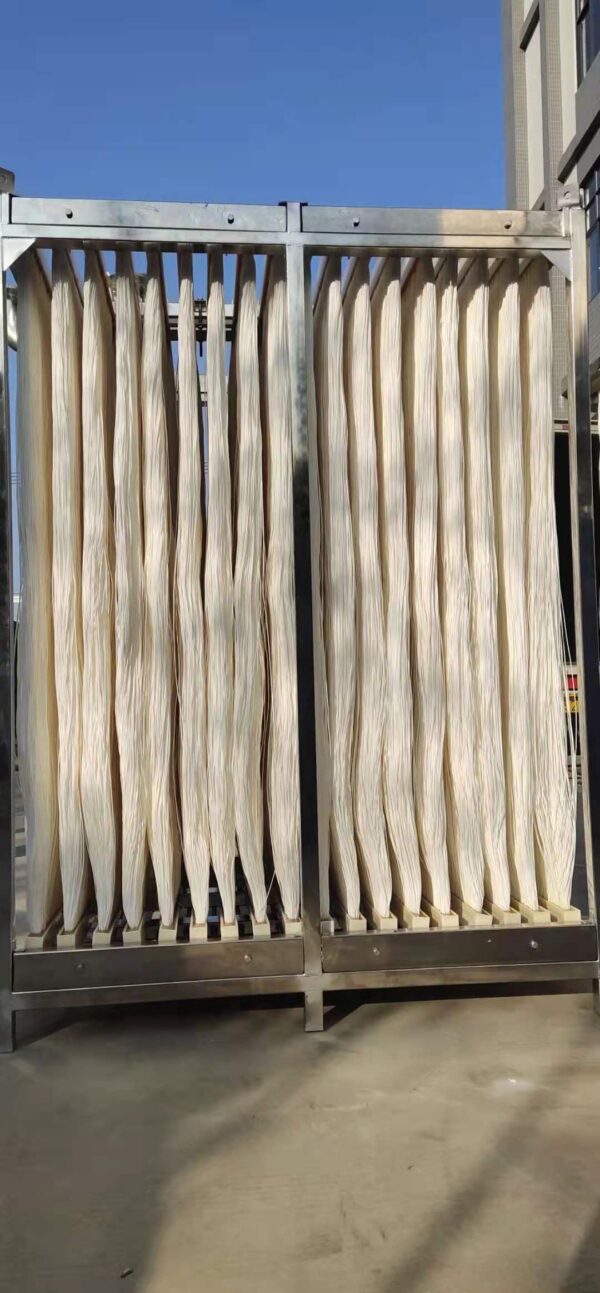

Standard specification of our MBR cassettes:
| Model | Capacity(m3/d) | Effective area(m2) | Module size（mm） |
| SKID100 | 100 | 330 | 2200 x 750 x1750 |
| SKID200 | 200 | 660 | 2200 x 1600 x 1750 |
| SKID300 | 300 | 1000 | 2500 x 1600 x 2200 |
| SKID400 | 400 | 1320 | 2200 x 1600 x 2500 |
| SKID500 | 500 | 1750 | 2500 x 1700 x 2500 |
