Membrane Reactor

Membrane Reactor

A membrane reactor is really just a plug-flow reactor that contains an additional cylinder of some porous material within it, kind of like the tube within the shell of a shell-and-tube heat exchanger.

Description

Description:

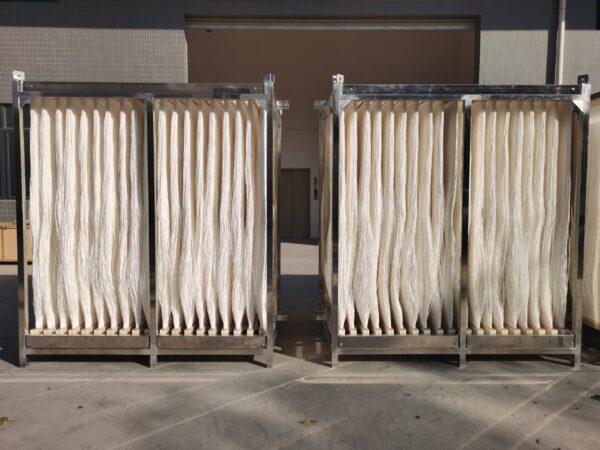

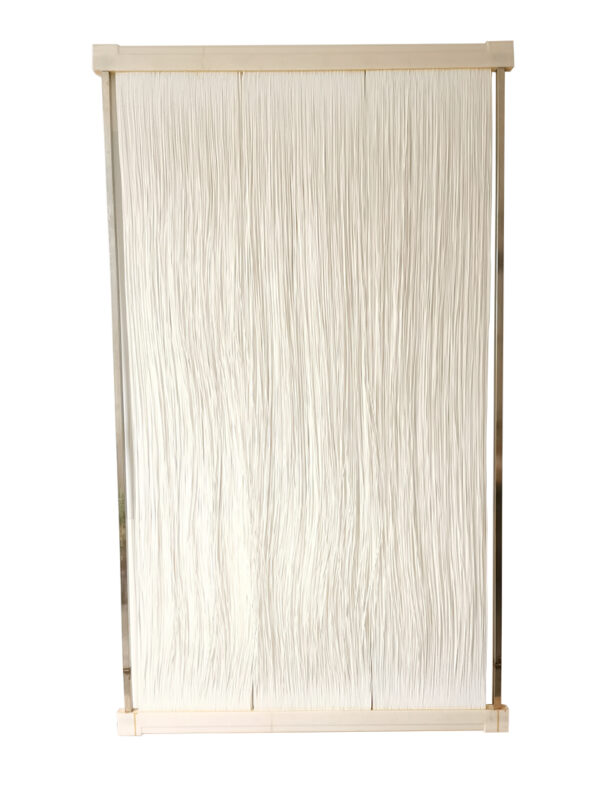

The membrane reactor system consists of suspended growth biological reactor combined with ultra filter membrane modules. In this process,ultra filter membrane directly separate solids from mixed liquid in biological reactors. This method can eliminate the secondary clarifier and prevent any biological solids loss in the effluent and allow a very high concentration of biomass. Membrane Reactor features permanently hydrophilic, excellent anti-oxidation, high Intensive strength(≥200N), and high anti-peeling strength. It provides large flux and fine filter precision.

A membrane reactor is really just a plug-flow reactor that contains an additional cylinder of some porous material within it, kind of like the tube within the shell of a shell-and-tube heat exchanger. It has excellent and stable permeate quality and long lifespan for 5-8 years. It has large installed filling area but with small footsprint.

Specification:

Module DataMBR-10MBR-20MBR-30
Nominal Area(m2)102030
Recommend Flow(m3/d)3.0~4.55.0~7.57.5~11
Dimensions(mm)1000*535*40 800*630*421800*535*40 1500*630*422000*630*42
Membrane MaterialReinforced –PVDF
Pore size(μm)0.1μm or 0.04μm
Fiber Diameter2.2/1.0mm or 2.6/1.2mm
Breaking Strength> 200N
Flow PathOutside-in
TMP Range-0.05 to 0.05Mpa
Operating Temperature5-40℃
Operating PH Range2.0-10.0
Backwash Flux30-60L/m2.h
Permeate Turbidity≦0.5 NTU

NOTE:MBR -5,MBR-12,MBR-25,MBR-35 and customized model are available.
