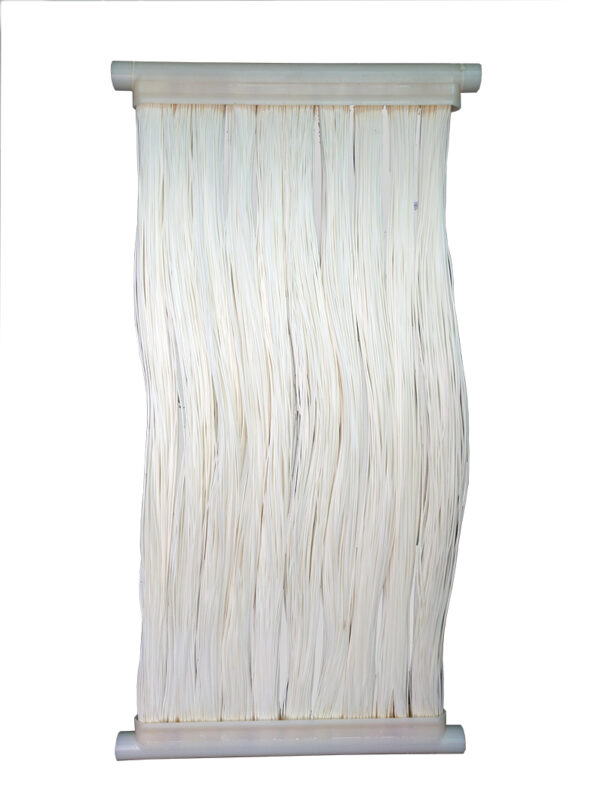

Membrane Bioreactors

Membrane Bioreactors

The benefits of Membrane Bioreactors includes a reduced footprint, usually 30-50% smaller than an equivalent conventional active sludge facility with secondary clarifiers and media tertiary filtration.

Description

Description
Membrane bioreactors are used to treat sewage and wastewaters and achieve purification with respect to biochemical oxygen demand, chemical oxygen demand, total suspended solids, ammonia, total nitrogen and total phosphorous. Membrane bioreactors for wastewater treatment is a combination of a suspended growth biological treatment method, usually activated sludge, with membrane filtration equipment, typically low-pressure microfiltration or ultrafiltration membranes. The membranes are used to perform the critical solid-liquid separation function. In activated sludge facilities, this is traditionally accomplished using secondary and tertiary clarifiers along with tertiary filtration. The benefits of Membrane Bioreactors includes a reduced footprint, usually 30-50% smaller than an equivalent conventional active sludge facility with secondary clarifiers and media tertiary filtration. The process also produces exceptional effluent quality capable of meeting the most stringent water quality requirements, a modular schematic that allows for ease of expansion and configuration flexibility, a robust and reliable operation and reduced downstream disinfection requirements.

Specification:

Module Data MBR-10 MBR-20 MBR-30
Nominal Area(m2) 10 20 30
Recommend Flow(m3/d) 3.0~4.5 5.0~7.5 7.5~11
Dimensions(mm) 1000*535*40 800*630*42 1800*535*40 1500*630*42 2000*630*42
Membrane Material Reinforced –PVDF
Pore size(μm) 0.1μm or 0.04μm
Fiber Diameter 2.2/1.0mm or 2.6/1.2mm
Breaking Strength > 200N
Flow Path Outside-in
TMP Range -0.05 to 0.05Mpa
Operating Temperature 5-40℃
Operating PH Range 2.0-10.0
Backwash Flux 30-60L/m2.h
Permeate Turbidity ≦0.5 NTU

NOTE: MBR -5,MBR-12,MBR-25,MBR-35 and customized model are available.
