Description
Water filter membrane is made of porous material which can be used to sperate the contaminants from water with the application of a driving force. At present water filter membrane technique is being used for both drinking and wastewater’s treatment as well as to purify many of the products such as commercial food and beverage.
Water filter membrane process can be achieved by applying a force to a semi-permeable but a thin layer of material and this process can be helpful in removing bacteria, particulates, organic matter, and micro-organisms. Filtration membrane can provide excellent benefits for beverage and food industries by aiding in the process of clarification, concentration, purification, and desalting of potable food and liquid items.

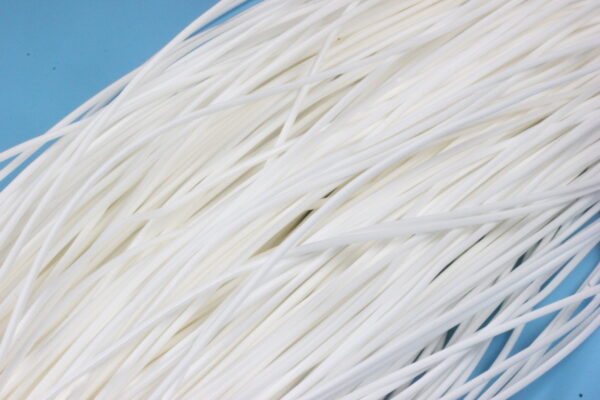

Reinforced PVDF hollow fiber membrane specification
Membrane properties | A series | B series |
Nominal pore size | 0.1μm | 0.04μm |
Outer/Inner diameter | 2.2/1.0 | 2.6/1.0 |
Pure water flux@1bar, 25℃ | 1000-1200 | 800-1000 |
Recommend design flux | 10-25L/m2.h | |
Reinforced material | Crochet PET tube | |
Processing method | Embedded coating | |
Breaking strength | >200N | |
Flow path | Outside-in | |
Recommend backwash flux | 30-60L/m2.h | |
Operating temperature | 5-40℃ | |
Operating PH range | 2.0-10.0 | |
Cleaning PH range | 1.0-13.0 | |
Max.Na CIO concentration | 5000ppm | |
Permeate Turbidity | ≤0.5NTU |
Technical advantage of Reinforced PVDF water filter membrane:
1.Narrow pore size distribution(0.04μm or 0.1μm), it can remove most virus, microbe, bacteria, colloid and macro molecules organism etc. It can ensure the good output good quality.
2.It adopts embedded reinforced PET core with highest mechanical strength, high anti-peeling strength. There is no broken and peeling during normal operation. And it can withstand high frequent backwash.
3.Longer lifespan and stable water quality.
4.The water filter membrane with permanently hydrophilic modification, no wet-treatment required before using or re-storage. It can adopt dry form for storage and transportation.
