Membrane Bioreactor Design

Membrane Bioreactor Design

The membrane bioreactor design in MBR system wastewater treatment syndicates a step of biological treatment mostly activated sludge through a membrane step which is ultrafiltration of low pressure or ultrafiltration.

Description

Description

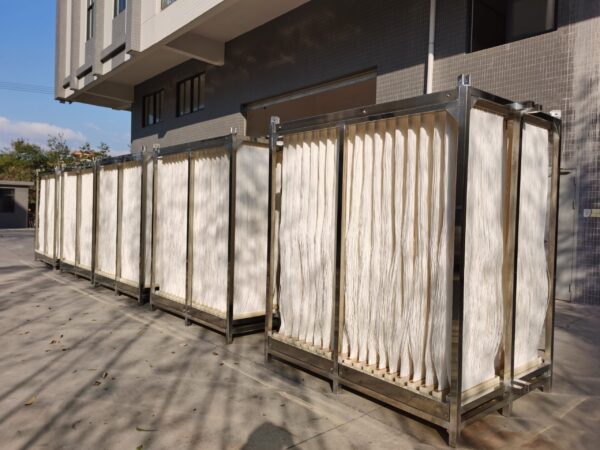

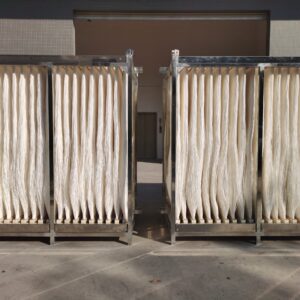

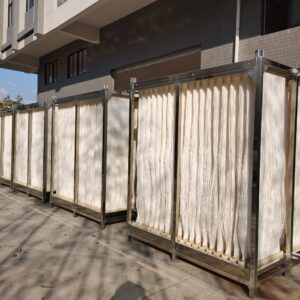

The membrane bioreactor design in MBR system wastewater treatment syndicates a step of biological treatment mostly activated sludge through a membrane step which is ultrafiltration of low pressure or ultrafiltration. Membrane bioreactor is formulated for meeting the demands of municipal and industrial sewage treatment. The main aim of this wastewater treatment is to remove pollutants from water. Hydro Blue membrane bioreactor adopts a new generation of PVDF hollow fiber membrane in membrane bioreactor design with the high pollution resistance, enables high mechanical strenth, higher flux. The membrane design with the features of compact structure, large fill density and easy to install.

Among the innovative Membrane Bioreactor Design, it highlights the efficacy of the spongefixed bed MBR, which produces a treated effluent near reuse standard. It offers effective organics removal while reducing membrane fouling.

Module Data MBR-10 MBR-20 MBR-30
Nominal Area(m2) 10 20 30
Recommend Flow(m3/d) 3.0~4.5 5.0~7.5 7.5~11
Dimensions(mm) 1000*535*40 800*630*42 1800*535*40 1500*630*42 2000*630*42
Membrane Material Reinforced –PVDF
Pore size(μm) 0.1μm or 0.04μm
Fiber Diameter 2.2/1.0mm or 2.6/1.2mm
Breaking Strength > 200N
Flow Path Outside-in
TMP Range -0.05 to 0.05Mpa
Operating Temperature 5-40℃
Operating PH Range 2.0-10.0
Backwash Flux 30-60L/m2.h
Permeate Turbidity ≦0.5 NTU

NOTE:MBR -5,MBR-12,MBR-25,MBR-35 and customized model are available.

Advantages:
● Simple structure, easy installation and maintenance.

● Good hydrophilicity, more stable operating flux.

● Have a lesser footprint.

● High filtration accuracy, not easy to be pollution clogging , good permeate quality.
