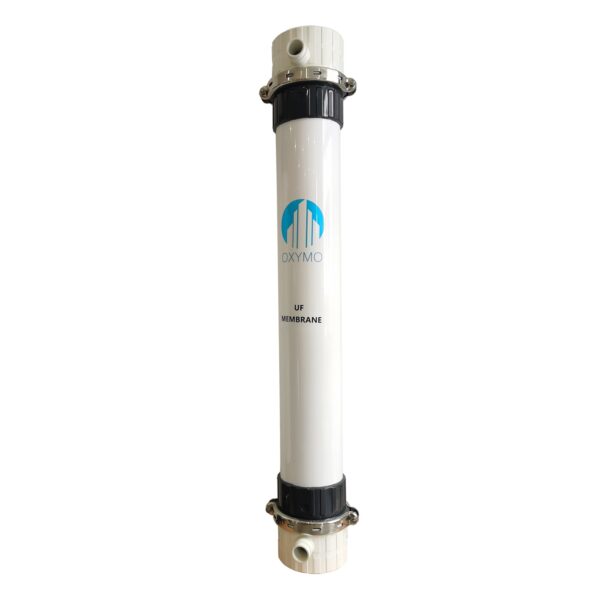

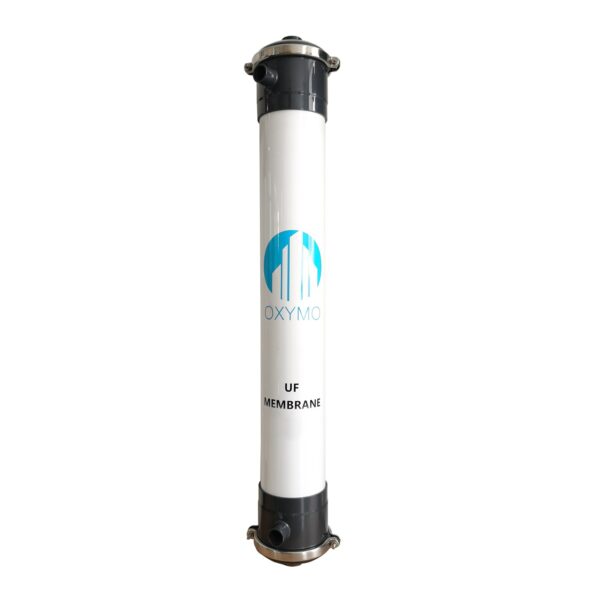

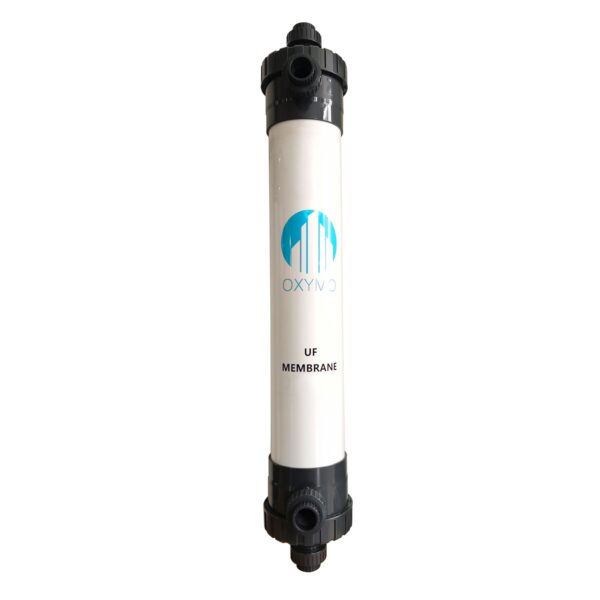

UF Filter

UF Filter

The UF Filtration is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media.

Description

The UF filter uses the hollow fiber technique in which the water flows inside a lumen of fibers or inside a shell. Solids and solutes which have a higher molecular weight are restricted while lower molecular weight particles and water pass through the membrane easily. The UF filter is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. It is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water. This process of separation is usually used in industrial and research for purification of water. The only thing that makes ultrafiltration different from nanofiltration, microfiltration and reverses osmosis is the mass of the molecules that are retained. The UF Filtration removes high molecular-weight substances, colloidal materials, organic and inorganic polymeric molecules.

Module data UF90 UF160 UF200 UF250
Dimensions(mm) Ф90×1175 Ф160×1420 ф200×1475 ф250×1715
Nominal Area(m2) 6 24 35 60
Recommend Flow(m3/h) 0.2-0.3 0.8-1.2 1.0-1.5 2.0-4.0
Membrane material PVC/PAN/PVDF/Reinforced PVDF/PES
Diameter of hollow fiber(mm) 1.66/1.0 or 2.4/1.2
Nominal pore size 0.01μm  (0.001~0.1um are optional)
Filter Path Inside-out(PVC / PAN), Outside-in (PVDF)
Configuration type Configuration type
Max. Feed pressure (Mpa) 0.3
Recommended TMP (Mpa) 0.02-0.08

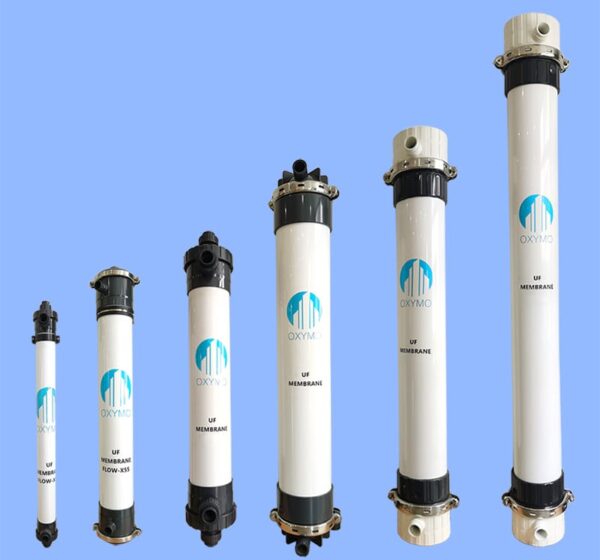

UF6060,UF6080,UF8060,UF8080,UF10080 UF water filters are available too.
