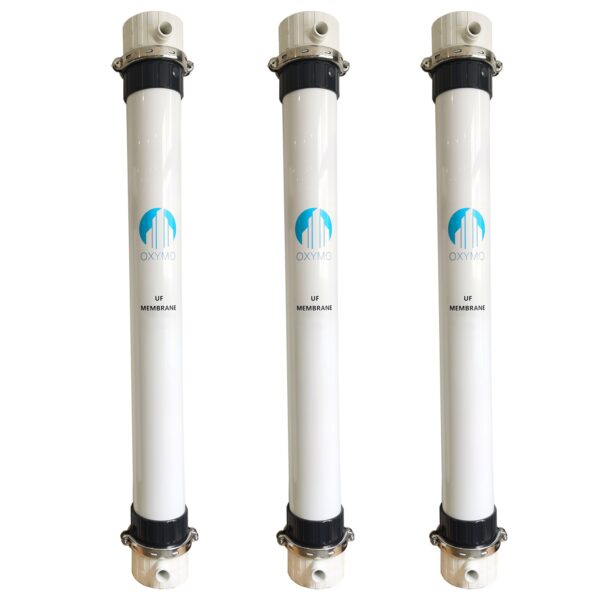

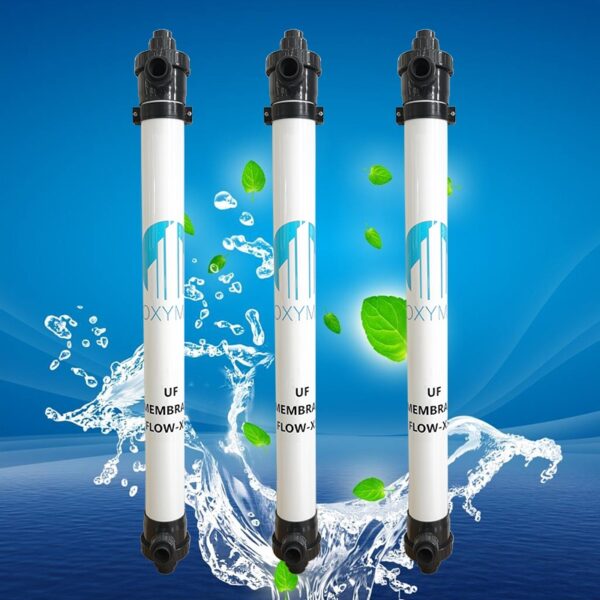

Ultrafiltration Unit

Ultrafiltration Unit

The ultrafiltration unit of ultra filtration or the UF membrane water filter procedures part of many companies of membrane procedures for the water treatment and customs part of its varieties of tubular membranes.

Description

Description

The ultrafiltration unit of ultra filtration or the UF membrane water filter procedures part of many companies of membrane procedures for the water treatment and customs part of its varieties of tubular membranes. It is a purification procedure used in water dealing that benefits eliminate particulates and macro molecules from raw water for drinkable water (potable water) manufacture, among numerous others. Ultrafiltration unit purification usages either pressure powers or concentration slopes to allow parting over semi-permeable membranes. Adjourned solids and great molecular mass solutes are recollected though the water and little molecular mass solutes go through.

Ultrafiltration Unit is a membrane barrier that filters out particles as small as 0.01 microns, including bacteria, viruses and colloids. It has several advantages when compared to conventional treatments such as clarifiers and media filters. It has high tolerance to feed water quality upsets, is an absolute barrier, and improves water quality.

Module data UF90 UF160 UF200 UF250
Dimensions(mm) Ф90×1175 Ф160×1420 ф200×1475 ф250×1715
Nominal Area(m2) 6 24 35 60
Recommend Flow(m3/h) 0.2-0.3 0.8-1.2 1.0-1.5 2.0-4.0
Membrane material PVC/PAN/PVDF/Reinforced PVDF/PES
Diameter of hollow fiber(mm) 1.66/1.0 or 2.4/1.2
Nominal pore size 0.01μm  (0.001~0.1um are optional)
Filter Path Inside-out(PVC / PAN), Outside-in (PVDF)
Configuration type Configuration type
Max. Feed pressure (Mpa) 0.3
Recommended TMP (Mpa) 0.02-0.08

UF6060,UF6080,UF8060,UF8080,UF10080 UF water filters are available too.

Advantages
1.The flow rate of purity will be 99%. Through this method, a continuous supply of purified water can do.
2.Energy consumption will be low and hence, this is the best way to get purified water at a lower cost.
3.In this process, there will be less waste because there will be no gas that can go in the waste.

Hot Tags: ultrafiltration unit, China, manufacturers, suppliers, factory, customized, made in China,
