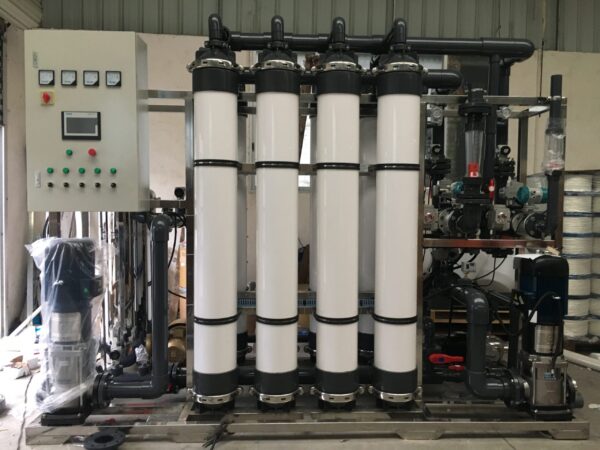

UF Plant

UF Plant

Ultra-filtration (UF) is a membrane separation technology that purifies and separates liquor.

Description

Ultra-filtration (UF) is a membrane separation technology that purifies and separates liquor. UF plant is a solution separation device in which an ultrafiltration membrane is used as a filter medium and a pressure difference on both sides of the membrane is a driving force. The ultrafiltration membrane only allows the solvent (such as water molecules), inorganic salts and small molecular organic substances in the solution to pass through, and the macromolecular substances such as suspended matter, colloid, protein and microorganisms in the solution are intercepted,thereby achieving the purpose of purification and separation in UF plant application.

Module data UF90 UF160 UF200 UF250
Dimensions(mm) Ф90×1175 Ф160×1420 ф200×1475 ф250×1715
Nominal Area(m2) 6 24 35 60
Recommend Flow(m3/h) 0.2-0.3 0.8-1.2 1.0-1.5 2.0-4.0
Membrane material PVC/PAN/PVDF/Reinforced PVDF/PES
Diameter of hollow fiber(mm) 1.66/1.0 or 2.4/1.2
Nominal pore size 0.01μm  (0.001~0.1um are optional)
Filter Path Inside-out(PVC / PAN), Outside-in (PVDF)
Configuration type Configuration type
Max. Feed pressure (Mpa) 0.3
Recommended TMP (Mpa) 0.02-0.08

UF6060,UF6080,UF8060,UF8080,UF10080 UF water filters are available too.

The applications of UF plant:
1.Surface water .
2.Ground water.
3.Pretreatment of RO system.
4.Drinking water treatment.
5.Industrial used water treatment.
6.Treatment&Reuse of sewage &wastewater.
7.Recycle of water( Coolong tower, swimming pool, water landscape).
8.Pretreatment of RO system for desalination of seawater.
9.Concentration, separation& recycle of chemicals.

What is the technology of hollow fiber membrane in UF plant?
The technology of hollow fiber membrane in UF plant is an active way for purifying water with the help of a physical barrier filter which makes water pathogens free. The best part about this ultrafiltration is that chemicals are not used in this process. Natural materials like magnesium and calcium are not removed from the water. Billions of gallons of water are being purified every day with this process making society move towards a healthier tomorrow.
