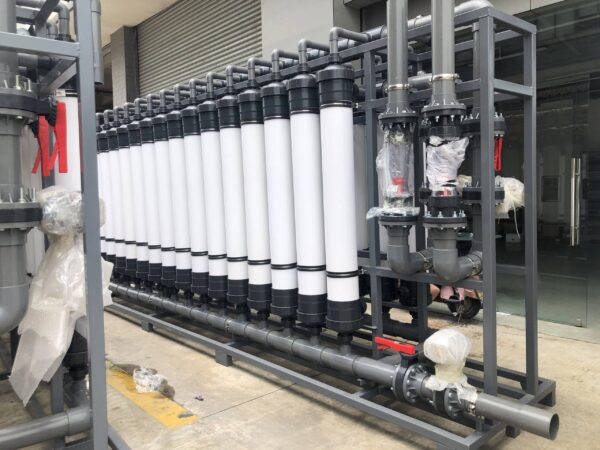

Ultrafiltration Membrane Plant

Ultrafiltration Membrane Plant

Ultrafiltration membrane plant is ecologically beneficial as it is reliable. It makes sure that water has be treated ,and then is reaching plants, fish and other nature in order to provide them a healthy environment to live in.

Description

Ultrafiltration membrane plant is ecologically beneficial as it is reliable. It makes sure that water has be treated ,and then is reaching plants, fish and other nature in order to provide them a healthy environment to live in. Ultrafiltration membrane plant provides a source for water consumers to use reprocessed water. As contamination only harms the living things ultrafiltration is extremely important to provide safe water to them. It leads to a decrease in contamination and the technology of wastewater treatment plant. Reprocessed water is also energy efficient. When the water flows, more water is taken out and preserved in order to be conveyed this requires a lot of energy. If water is reprocessed on the site it reduces the amount of energy that is required.

Module data UF90 UF160 UF200 UF250
Dimensions(mm) Ф90×1175 Ф160×1420 ф200×1475 ф250×1715
Nominal Area(m2) 6 24 35 60
Recommend Flow(m3/h) 0.2-0.3 0.8-1.2 1.0-1.5 2.0-4.0
Membrane material PVC/PAN/PVDF/Reinforced PVDF/PES
Diameter of hollow fiber(mm) 1.66/1.0 or 2.4/1.2
Nominal pore size 0.01μm  (0.001~0.1um are optional)
Filter Path Inside-out(PVC / PAN), Outside-in (PVDF)
Configuration type Configuration type
Max. Feed pressure (Mpa) 0.3
Recommended TMP (Mpa) 0.02-0.08

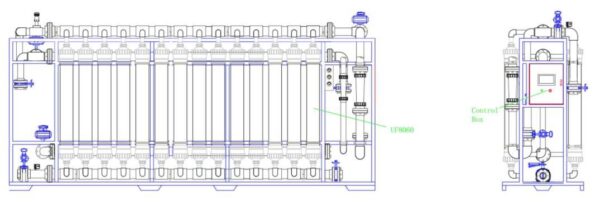

UF6060,UF6080,UF8060,UF8080,UF10080 UF water filters are available too.

Advantage of ultrafiltration Membrane Plant:

1. Removal of all suspended solid, algae, bacterial, virus to ensure your healthy.
2. Decrease of the dosage disinfectant(chlorine)
3. Stable and excellent water quality, turbidity less than 0.1NTU
4. Low pressure, Large flow(up to 80-100L/m2), energy saving.
5. Modular construction, small space required.
6. Hydrophilic modified to increase antipollutant, enhence chemical resistance

Ultrafiltration Membrane plant can be used for a variety of purposes, including:

1.Biological sewage treatment plant and wastewater treatment plant
2.Pretreat for purification of sea water
3.Restoration and reusing of urban waste
4.Enhancement and demineralization of medicinal water and boiler feed water
