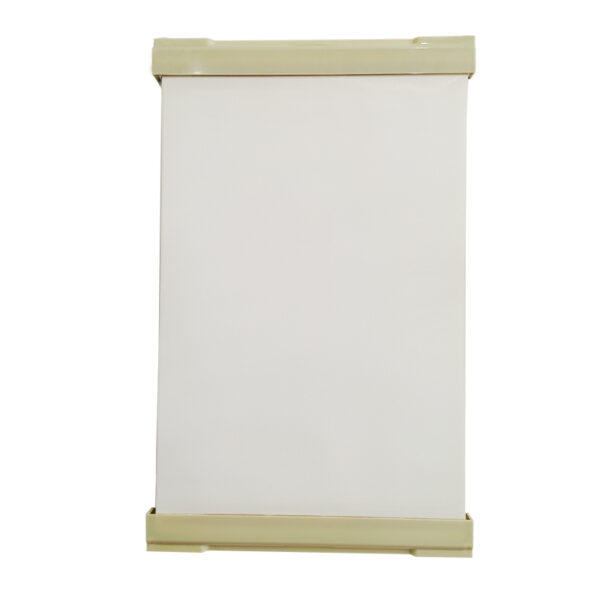

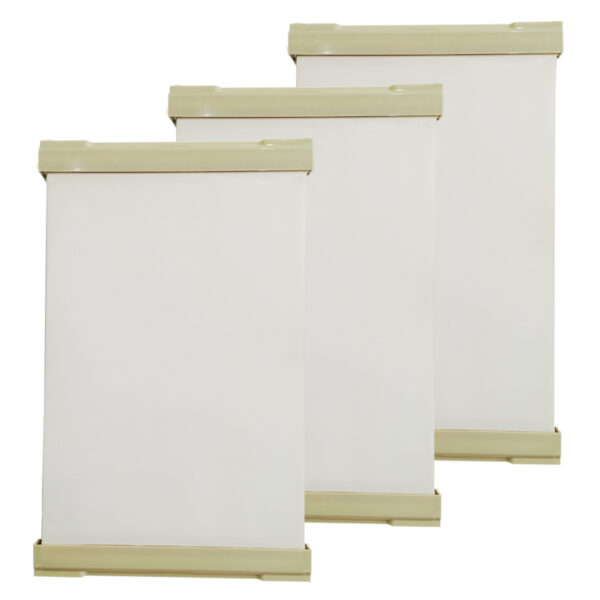

wavy flat sheet MBR membrane

wavy flat sheet MBR membrane

ADVANTAGES

*Multi-Layers,Big Filtration Area same as hollow fiber.Small Footprint
*Large Flowrate,15~25L/m2.h
*Small air scouring,Low Energy Consumption
*high frequency vibration remove sludge automatically,minimium off-line,maintenance cycle (some case even up to 2years without off-lin clean)
*Excellent Fouling Resistance,unique wavy structure ensure no hari,no sludge captured on membrane surface.
*High Intensive and backwashable flat sheet

Description

Model  MBR-9W MBR-11W  MBR-13W
Effective membrane area (㎡) 9 11 13
Design Flowrate
(m3/day)
2.5-3.5 3.0-4.5 3.9-5.2
Dimension(mm) 1220*760*44 1500*760*44 1500*760*44
Dry/Wet Weight 7/11 8.1/13 9.6/18
Pore Size(μm) 0.1 0.1 0.1
Membrane material PVDF PVDF PVDF
