Membrane Filter

Membrane Filter

Membrane filtration technology is used in the membrane filter technique. This technique is best for the liquid and fluid samples that are used for the microbiological combinations.

Description

Membrane filtration technology is used in the membrane filter technique. This technique is best for the liquid and fluid samples that are used for the microbiological combinations. This technique is used to test these fluids. This method is quick because there is very less work that you should do. You can simply do the testing by the traditional methods that are being used for several years. One method that is famous from all the methods is the strategy that will allow the isolation of the microorganisms that are present. The fluid is tested in the package sewage treatment plant and this overall process of passing this fluid through this plant is known as the membrane filter technique.

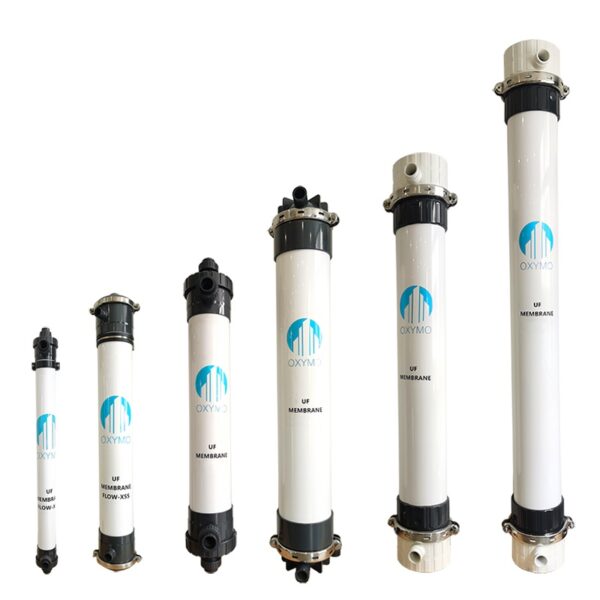

Module data UF90 UF160 UF200 UF250
Dimensions(mm) Ф90×1175 Ф160×1420 ф200×1475 ф250×1715
Nominal Area(m2) 6 24 35 60
Recommend Flow(m3/h) 0.2-0.3 0.8-1.2 1.0-1.5 2.0-4.0
Membrane material PVC/PAN/PVDF/Reinforced PVDF/PES
Diameter of hollow fiber(mm) 1.66/1.0 or 2.4/1.2
Nominal pore size 0.01μm  (0.001~0.1um are optional)
Filter Path Inside-out(PVC / PAN), Outside-in (PVDF)
Configuration type Configuration type
Max. Feed pressure (Mpa) 0.3
Recommended TMP (Mpa) 0.02-0.08

UF6060,UF6080,UF8060,UF8080,UF10080 UF water filters are available too.

Advantages of low-pressure membrane filter:
1.Chemicals are not required.
2.It does size exclusion filtration rather than media depth filtration.
3.Excellent quality of water in terms of microbial and particle removal.
4.Plant and process compactness.
5.Simple automation.

Why is it necessary to use membrane filter for water treatment?
Pure water is a necessity for all living things whether they are humans, animals, or plants.  In order to provide clean and purified water, water filtration is done. This is a process where high-pressure water is passed through a membrane which is a very thin material having many small pores. The membrane stops tiny particles of bacteria from passing through in return purifying the water. Hydro Blue is a water filter membrane manufacturer which is a certified company producing high-end products.

Hot Tags: membrane filter, China, manufacturers, suppliers, factory, customized, made in China
