Description

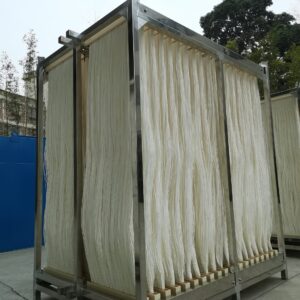

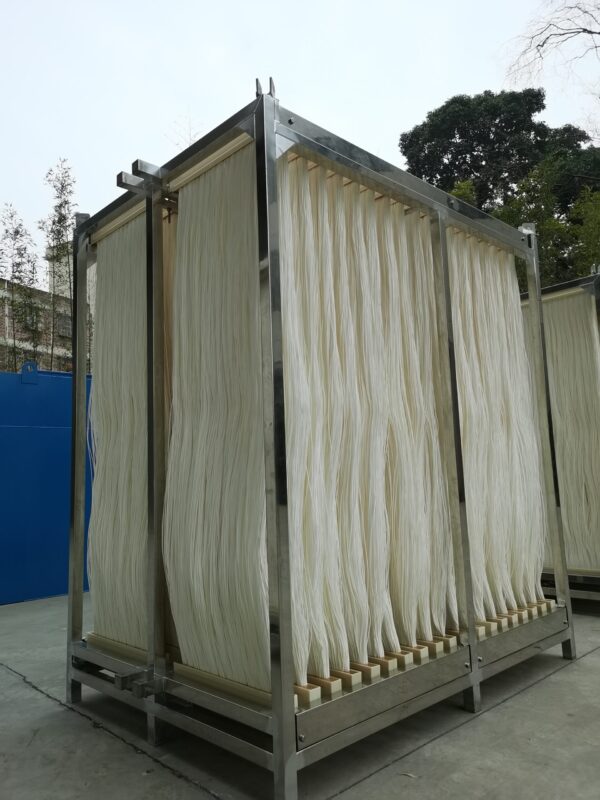

Membrane separation equipment is a new technology for sewage and wastewater treatment application, which is a combination of membrane separation and biochemical technologies. MBR module separate the water from biochemical reaction tank.It is effective to separate water from mixed liquid and solid via a membrane hollow fiber with 0.1um or 0.04um pore, and the activated sludge will be always stayed in the tank, so can degrade macro-molecular organics& digest Nitrogen& phosphorus etc. In an MBR system, the membranes are submerged in an aerated biological reactor. The outlet water of Membrane Separation Equipment is with a excellent quality, and can be recycle to car wash, garden, irrigation, toilet flushing, daily cleaning, and even for drining purpose after with further treatment.
Membrane Separation Equipment is specially designed for membrane bio-reaction in various sewage and wastewater treatment application. It can provide an advanced level of organic and suspended solids removal.
Specification:
| Module Data | MBR-10 | MBR-20 | MBR-30 |
| Nominal Area(m2) | 10 | 20 | 30 |
| Recommend Flow（m3/d） | 3.0~4.5 | 5.0~7.5 | 7.5~11 |
| Dimensions（mm） | 1000*535*40 800*630*42 | 1800*535*40 1500*630*42 | 2000*630*42 |
| Membrane Material | Reinforced –PVDF | ||
| Pore size(μm) | 0.1μm or 0.04μm | ||
| Fiber Diameter | 2.2/1.0mm or 2.6/1.2mm | ||
| Breaking Strength | > 200N | ||
| Flow Path | Outside-in | ||
| TMP Range | -0.05 to 0.05Mpa | ||
| Operating Temperature | 5-40℃ | ||
| Operating PH Range | 2.0-10.0 | ||
| Backwash Flux | 30-60L/m2.h | ||
| Permeate Turbidity | ≦0.5 NTU | ||
NOTE:MBR -5,MBR-12,MBR-25,MBR-35 and customized model are available.
Property of performance:
1.Membrane material is reinforced PVDF, which is with the highest auti-pollution ability, good mechanical intensity, easy to clean, especially suitable to sewage and wasterwater treatment.
2.Good chemical stability, resistant to acid&alkali, anti-bacterial corrosion, long lifespan(3-8years)
3.Air blowing can scour&clean the surface of fiber, no easy to be clogged.
4.High potting filter area, high design flow rate.
5.Uniform&symmetrical, pore size on fiber surface, can ensure a best entrapping.
